V700
Audio Modules
|

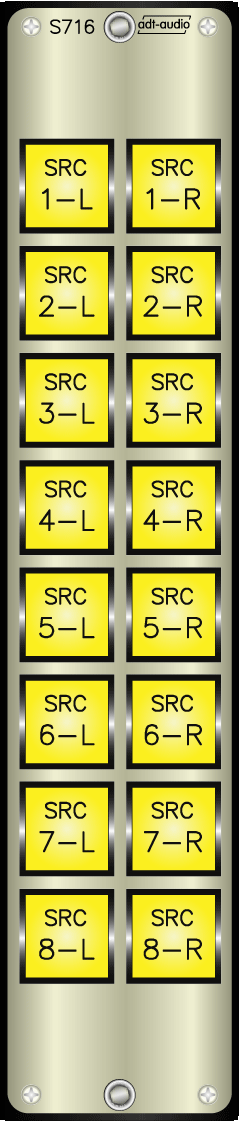

S716
Audio Source Select Module with 8 Stereo or 16 Mono Inputs
The S716 Audio Source Select device is a universally usable relay cross rail with 16 inputs with individual selection switches. The module has totally symmetric audio paths and ground-free contact switches. 16 inputs can be pursued alternatively in a configuration 16 in 1 or 8 in 2.
A self-locking switch that unlocks when another switch is pressed selects every input. In the 8 into 2 mode of operation, adjacent switches are connected simultaneously.
Several S716 audio source select modules may be daisy chained together to create a bigger system. The color and the inscription of the switch caps on the modules are based on customer's information.
The S716 audio source select is suitable for installation in V700 mixer frames. An installation in V700 standard frames is not intended. Mechanically the audio source select units fit in a standard frame; however, special, additional wiring is necessary.
|
