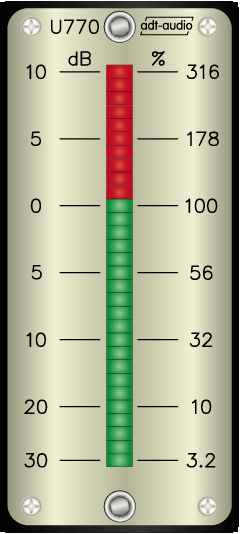

U770
Compact LED Peak Program Meter with 30 LED's,
Mono Version

The inputs of the meter are electronically balanced and can process levels of + 30 dB without retroaction on the inputs.

The mono peak program meter is designed for V700 custom build consoles and can be used for input channels, groups, and auxiliaries, or any other purpose. The 0 dB level can be adjusted in a wide range.

The resolution of the meter is 1 dB between + 10 dB and - 10 dB, and changes to 2 dB down to - 20 dB, and to 2.5 dB down to - 30 dB. The meter reads the peak value, according to DIN 45405, the polarity error is less than 0.25 dB. The attack time is less than 0.5 ms for a display of - 1 dB with a 0 dB 5 kHz burst signal of 0.5 ms. The internally adjustable release time is 1.5 sec for 20 dB. The release law is linearized to achieve constant speed at low levels.

The U770 compact LED PPM is a half high, half deep V700 module for console frames and custom-build frame that does not fit into V700 standard frames.

Test Review Inquiry
Price: ask
Specifications
Module for Console Frames
not suited for Standard Frames
open V700 Navigation Page

Custom Color of Faceplate
