V700
Audio Modules
|

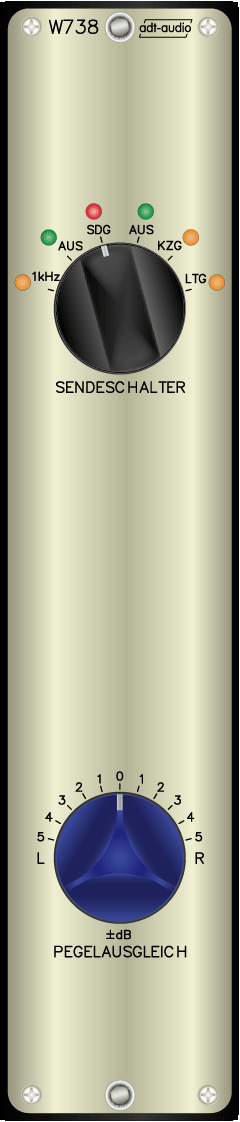

W738
Console Output Unit with Output Swtich and Stereo Balance Control
The W738 can be used as main console output amplfier.
The Output Amplfier ist implemented balanced and floating with oversized torodial transformers in dual balanced technology . The maximum input and output level and the internal headroom is + 30 dBu.
The Balance Control uses a stepper switch a makes possible to adjust the channel balance in 11 steps of 1 dB. It is used to compensate small level differences between both of the stereo channels without affecting the mix.
The balanced, floating outputs of the output amplfier are connected to the output switch, that is implemented as a 6 position stepper switch. Apart from additional mono inputs for oscillator and station signal there is an external stereo line input.
The output amplfier is used for customized V700 consoles and fits into mixer frames. Using the module in V700 standard frames is not possible.
|
