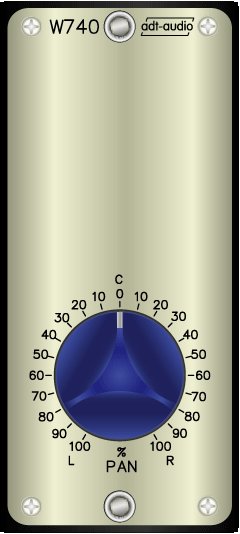

W740
Mono to Stereo Pan Pot with 3 dB Center Attenuation

The W740 is designed for V700 console frames and custom frames and does not fit into standard frames.

Pan Pot with

  • Mono Input, and
  • Stereo Output

Pan pot for general use with mono signals. The center attenuation is 3 dB and the control law is optimized for the regulation of the direction. The total loudness of the stereo output channel is identical with all settings.

The controls is a rotary pot with 21 steps.

Inputs and outputs are electronically balanced. Additional outputs for V700 zero ohm bus rails are installed. These outputs allow direct mixing without additional gear using the bus amps and master amplifiers of the V700 system.

The W740 Pan Pot is a half high, half deep V700 module for console frames and custom-build frame that does not fit into V700 standard frames.

Test Review Inquiry
Price: ask
Specifications
Module for Console Frames
not suited for Standard Frames
open V700 Navigation Page

Custom Colors for Faceplate and Knobs
