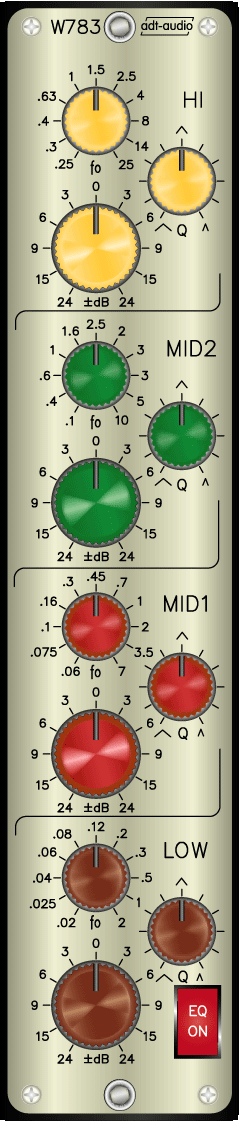

W783
parametric Equalizer with 4 fully parametric Bands and +/- 24 dB Boost/Cut Range.

The adt-audio W783 is a classic, 4-band, fully parametric equalizer with exceptional tonal qualities. All bands are fully parametric and cover the entire audio band with huge overlaps.

All EQ bands are based on the phase coherent, active Vienna Robinson's bridge principle of adt-audio. Each of the 4 overlapping bands offers 24dB of boost and cut and an adjustable bandwidth (Q factor from 3 octaves to a third), and has extraordinary resolution and benchmark transparency. The inputs and outputs are balanced and floating and can be implemented electronically balanced or transformer balanced; and the entire audio chain benefits from totally symmetric circuitry, which results in the massive headroom of +30dBu.

With its enormous range, transparency and phase coherency, extreme interventions of tonal surgery are possible. Even with extreme boosting or cutting of frequencies, this unit remains clean and crystal clear.

These modules are standard V700 units and they will fit into a standard frame.

Test Review Inquiry/Order
Price: ask
Specifications
fits into Standard Frames
Alternative:
ToolMod Pro Audio Modules
open V700 Navigation Page

Custom Control Ranges
Custom Color of Fascia and Knobs
