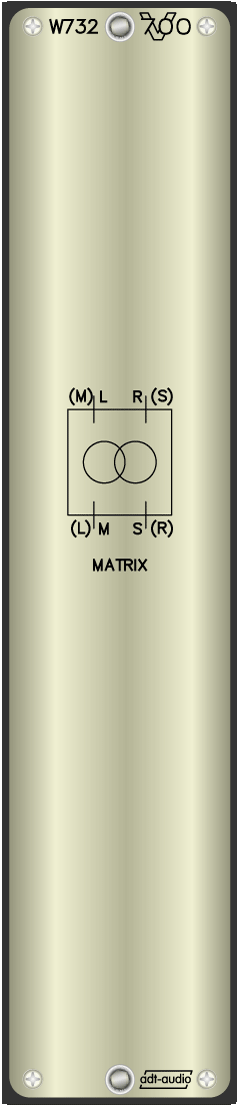

W732
M/S to L/R Matrix for the Format Conversion from or to M/S
This matrix makes possible to convert a standard left/right stereo signal into the M/S (mid / side) format or to reconvert an M/S signal to left-right stereo. The matrix has no control elements. It is used when format conversion is necessary before or after processing a signal in the M/S format.
The matrix is optimized for best crosstalk values and precisely trimmed. A left/right input signal is converted to a M/S signal. If the input signal is an M/S signal the matrix converts into the left/right format.
The inputs and outputs of the module are balanced and can handle a maximum level of + 30 dBu. Electronically balanced versions and transformer balanced versions, using oversized torodial transformers are available.
The W732 M/S matrix is a V700 1 slot module that fits into all standard frames.
|
