Control Elements |
Details and Specials |

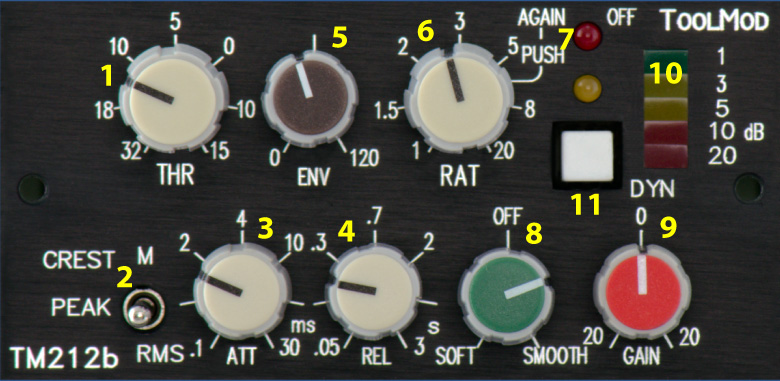

1 |
Threshold Control
regulation takes place with input levels above threshold control range +15 dB to -32 dB |
Crest
The Crest setting affects the behaviour of the ac/dc converter.Envelope
The Envelope Control can reduce the distortion of low frequency signals with short release time settings that is based on physical side effects. All frequencies below the scale setting of the envelope control are affected by this function.
Autogain
Autogain is an analog computation circuitry that compensates the loss of gain caused by the setting of the compressor. The calculation is based on the settings of threshold, ratio and attack.
|
2 |
Crest Selector RMS - long integration time, RMS characteristics Peak - short integration time, peak characteristics M - medium integration time, compromize between peak and RMS - see Details and Specials for more |
3 |
Attack control with range from .1 ms to 30 ms for 10
dB attenuation
determines the response time of the regulation to an increase in level |
4 |
Release control with range from 50 ms to 3 sec. Determines
how fast the compressors reduces the attenuation when the input signal drops
down. |
5 |
Envelope Control
improves the compression of low frequency signals
range 0 = Off to 120 Hz
- see Details and Specials for more |
6 |
Ratio Control, adjust the compression ratio for signals above threshold.
control range 1:1 = no compression
2:1 = a signal of 10 dB above threshold is reduced to 5 dB
20 : 1 , quasi limiter operation, 10 dB above threshold is reduced to 0.5 dB |
7 |
Disables the Autogain function by the push-pull switch
of the ration control.
- see Details and Specials for more |
8 |
Soft/Smooth:
Soft = Soft-Knee control with range from 0 dB to 12 dB. At the center position
and from center to the right,, the transition from the unregulated level range
below threshold to the regulated range above threshold is hard. Any other position
causes a soft knee characteristics, which means that the transition takes place
over a level range that matches the setting of the control.
Smooth = parallel Compression. At the center position and from center to the
left, parallel compression is off. To the right, the uncompressed input signal
is mixed to the compressed output with a max level of -4 dB. |
9 |
Gain control with calibrated center position and center detent, range > +/- 20 dB. The gain control affects the output level post compressor |
10 |
LED chain with 5 LED's, displays the actual gain reduction
display range from 1 dB to 20 dB |
11 |
Bypass switch |
