ToolMst Master and Monitor Controller Connectors
Analog Summing Gear ToolMix

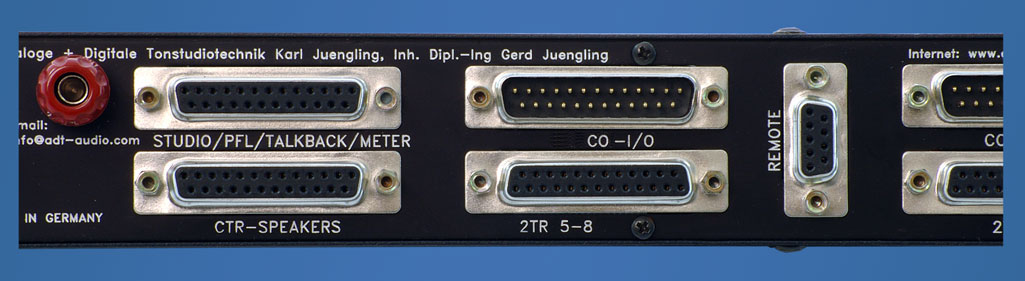

Detailed view of the D-Sub connectors for Playback, Talkback, PFL and external meter, the control room speaker outputs, the inputs for the external 2-track sources 5 to 8, and the console connector that contains everything that is necessary to integrating a ToolMSt with an external mixing console, and the remote connector.
Master and Monitor Controller ToolMst
Connector Pinnings: Console-Port 2-Track Inputs 5-8 Remote Control XLR
Rear Total View
|
