V700 Surround Sound Faders and Joysticks

The V700 series offers several fader modules and joy sticks for 5.1 format and 4 channel surround. All devices are VCA controlled using a double balanced audio chain and electronically balanced input and outputs. For stand alone use, external transformers can be added in a separate housing. If the modules are used in a console, the transformers are not required, of course. All units have additional outputs to feed the V700 summing busses.

W770
6 Channel Fader for 5.1 Format

A 6 channel VCA Fader unit without automation computer interface with 126.5 mm Penny & Giles Fader for use with 5.1 Surround signals.

W753
automated 4 Channel Fader Unit

4 Channel VCA Fader with automation interface, LED chain next to the fader and VCA Group select switch for use with 4 channel surround signals.

W754
Automated 6 Channel Fader Unit

The W754 is the automated versions of the W770 6 channel fader. It contains the automation interface, a LED chain next to fader and a VCA Group select switch.

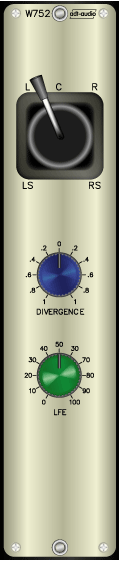

W752 Joy Stick Module for 5.1 Format Automated Joy Stick controller for 5.1 surround sound. In addition to the joy stick that controls L, C, R, SL and SR there are rotary controls for the LFE and the divergence.

W751 Joy Stick Module for 4 Channel Surround Automated Joy Stick controller for 4 channel surround sound. The divergence is controlled by an additional pot. The unit uses 2 standard VCA automation ports.
