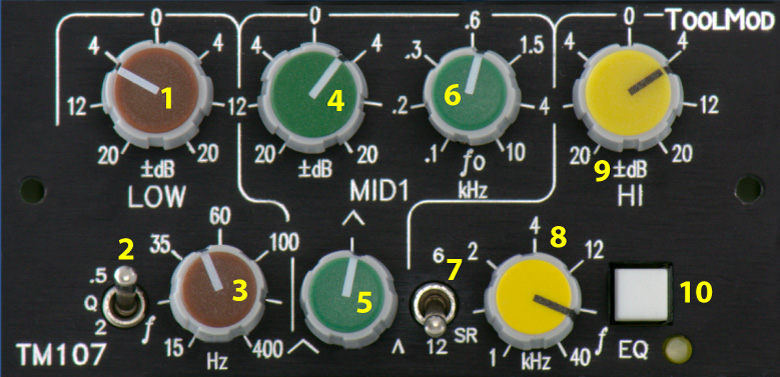

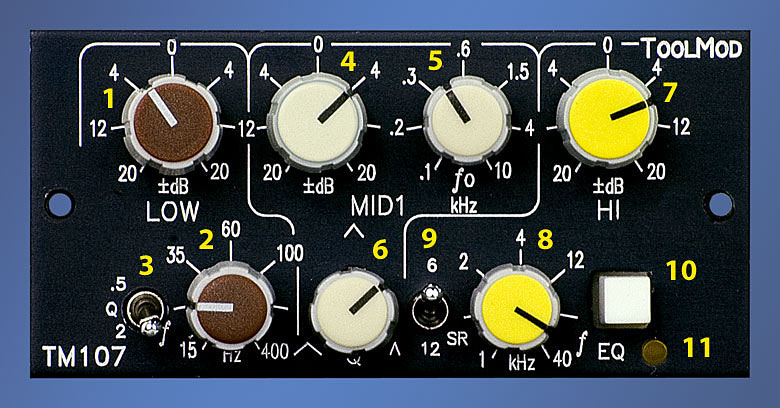

Boost/cut control Low EQ with center detent at 0 dB
- see Details and Specials for more |
Versions with different Control Range
The TM107 Equalizer is available with +/- 20 dB and +/- 12 dB control range.
Low EQ
The characterisits of the low EQ is a bell. The q-factor is determined by a lever switch. An additional control determines the center frequency.
Hi-EQ
The hi-eq is a sweeped shelving filter. The steepness is determined by a level switch that selects either 6 dB/oct or 12 dB/oct.
|
2 |
Q-factor switch Low EQ
soft = 0.5, hard = 2
- see Details and Specials for more |
3 |
Center frequency control Low EQ, control range 15 Hz to 400 Hz
- see Details and Specials for more |
4 |
Boost/cut control Mid 1 EQ with center detent at 0 dB
- see Details and Specials for more |
5 |
Q-factor control Mid 1
control range from > 3 octaves to a third |
6 |
Center frequency control Mid 1
control range from 100 Hz to 10 kHz |
6 |
Q-factor control Mid 1
control range from > 3 octaves to a third |
7 |
Steepness Selector for the Hi-EQ
Lever switch for the selection of 6 or 12 dB/oct.
- see Details and Specials for more |
8 |
Frequency control for Hi-EQ
control range from 40 kHz to 1 kHz
- see Details and Specials for more |
9 |
Boost/cut control High EQ with center detent at 0 dB
- see Details and Specials for more |
10 |
Bypass Switch |
